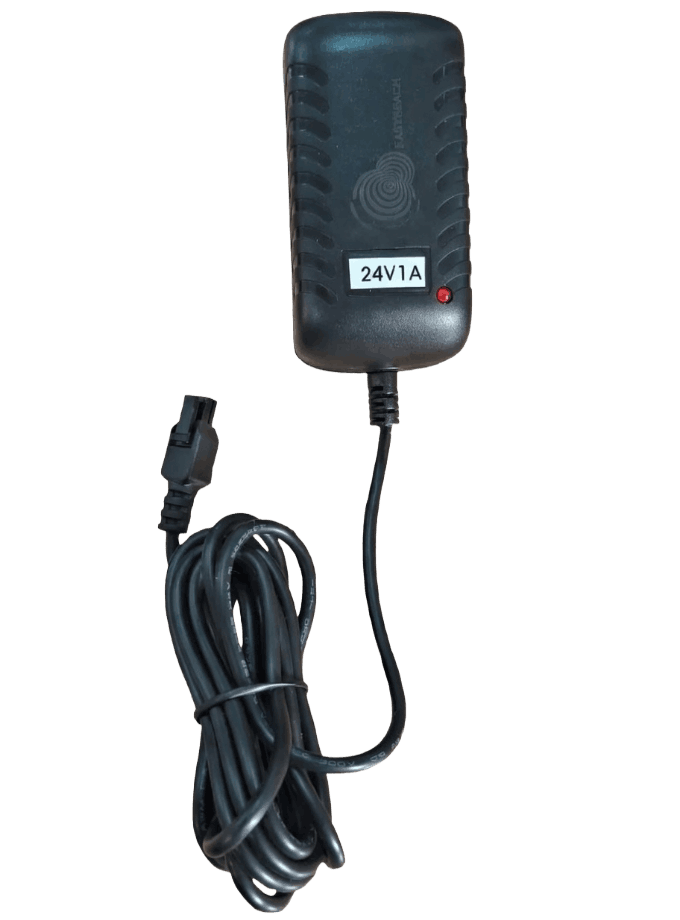

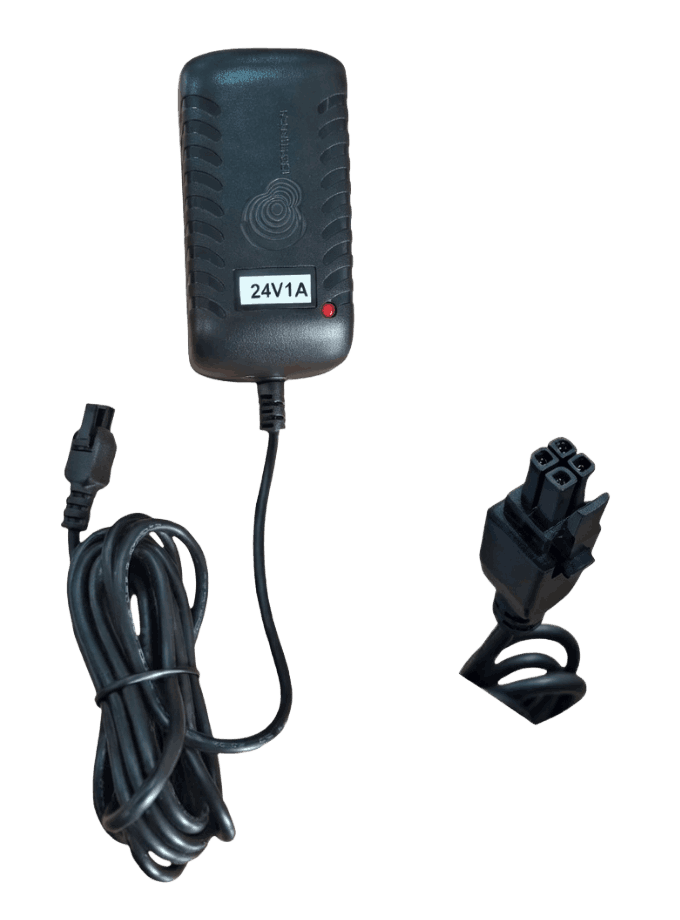

24V 1A Adapter with Molex Connector
Plug n Play
Used for Industrial Gateway, Routers
GaN Tech Inside
Results in least thermal emission
Special Connector
Special Molex Connector
Surge Protection
Inbuilt 2KVA surge protection
Precision Depth
Profining
Accurate to 5mm, ensuring trench compliance with depth requirnments.
Cloud
Sync
Real-time data to the cloud via a reliable Mobile WiFi connection.
Effortless
Integration
Ready-to-deploy, facilitating immedate use in field operations.
Time
Saver
Cuts manual measurenment time by up to 50%, boosting field productivity.
Product Overview
A 24V 1A adapter with a Molex connector is an industry grade power adapter. It provides stable 24 volts DC with a maximum output current of 1 amps to IoT devices. It is used for powering IoT and industrial devices. This adapter comes with inbuilt protection features such as over voltage, under voltage, over current, under current, temperature control, output short circuit, input voltage spike, etc.
The device uses GaN Tech, the latest technology used that ensures least temperature emission even at maximum current of 1A. It is lightweight and small and easy to use, carry and transport.
Features of 24V 1A Adapter with Molex Connector:
Voltage and Current Rating:
The input voltage of this adapter with Molex Connector is 100-300V AC/DC. It is designed for industrial applications that consume less electric power.
Adapter with Molex Connector:
Molex connect provides secured fitting inside the jack, there by reducing chances of failure due to power disconnection.
Compact Size:
24V 1A Adapter is a small size and lightweight adapter that is easy to use and transport.
Short-Circuit & Surge Protection:
Inbuilt MOV provides protection of upto 2KVA surge. Device also provides short circuit protection.
Energy Efficiency:
The new technology makes 24V 1A adapter with Molex connector more power and energy efficient. It is designed to save power loss during operation.
Cable Length:
The cable length of the 24V 1A adapter ranges from a few feet to several feet and is easy to connect devices.
Benefits:
- For use to safeguard the circuit from voltage surges
- For short circuit protection
- For handling proper outage wattage
- For handling the lightening surge up to 2kv
- Higher wattage and compact size
- It is environment friendly
- Ensure stable DC power
Specification
Details/Description
Surge Control
Upto2 KV
Input Voltage
100-300V AC/DC
Input Frequency Rang
50 Hz or 60 Hz (Universal Frequency Supported)
No Load Input Current
0.76 uA
No Load Input Power
5mW (Latest Technology IC Used)
In Rush Load Current
2A Maximum
Output Voltage Range
24V DC (3% voltage variation at full load of 30watt)
Output Ripple & Noise(mV)
80mV at full 1.5A
Output Voltage
24V DC, Teltronika Molex Connector
Cable Length
1 Meter
Output Current
1 Amp
Indicators
MainsOn
Protection
Over Voltage, Under Voltage, Over Current, Under Current, Temp. Control, output Short circuit, Inputvoltage Spike
Enclosure Material
ABS Plastic
Enclosure Dimension
80mm x 40mm x 70mm (LxBxH)
Approx. Weight
50 gm
IP Rating
55
Temperature
10-60°C
Specification
Detail Description
Surge Control
Upto2 KV
Input Voltage
100-300V AC/DC
Input Frequency Range
50 Hz or 60 Hz (Universal Frequency Supported)
No Load Input Current
0.76 uA
No Load Input Power
5mW (Latest Technology IC Used)
In Rush Load Current
2A Maximum
Output Voltage Range
24V DC (3% voltage variation at full load of 30watt)
Output Ripple & Noise(mV)
80mV at full 1.5A
Output Voltage
24V DC, Teltronika Molex Connector
Cable Length
1 Meter
Output Current
1A
Indicators
MainsOn
Protection
Over Voltage, Under Voltage, Over Current, Under Current, Temp. Control, output Short circuit, Inputvoltage Spike
Enclosure Material
350 Grams
Enclosure Type
ABS Plastic
Enclosure Dimension
80mm x 40mm x 70mm (LxBxH)
IP
55
Temperature
10-60°C
