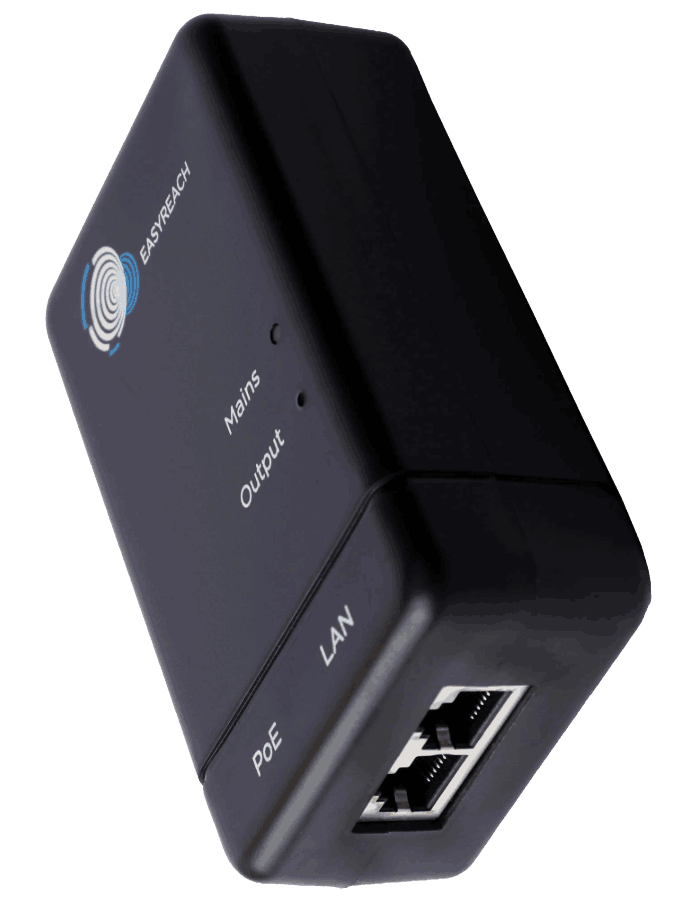

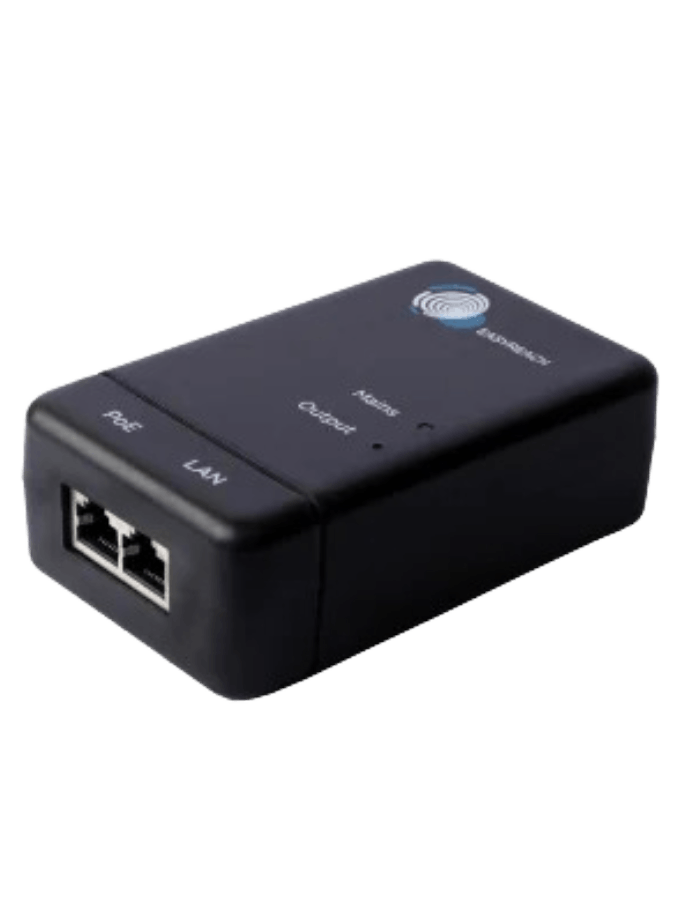

48V PoE adapter

Plug n Play

WiMAX , LoRa Gateway, and PoE devices

Effortless Integration

Ready-to-deploy, facilitating immediate use in field operations.

Wide Compability

Compatible With variety of WiMAX antennas from Cambium, Radwin, HFCl etc.

High Safety

Easyreach protects
the connected router from
damage.

Powering Connectivity with PoE

Harness the efficiency of EasyReach’s 48V PoE adapter, a cost-effective solution designed to power LoRaWAN Gateways and WiMAX Antennas. Used by Telecom Operators, MVNO, Communication network providers worldwide

  1. Reliable power supply to LoRaWAN Gateway and WiMAX antennas.
  2. A cost-conscious choice without compromising on quality.
  3. Plug – N – Play installation, no configuration needed
  4. High safety with short circuit protection
  5. CE & RoHS Certified
  6. Supports Gigabit speed

Specification

Details/Description

PoE

In-built PoE

Enclosure type

Heat Resistant ABS

Weight

Approximately 80 Grams

Dimensions (LxWxH)

115 MM(L) x 65 MM (W) x 35 MM (H)

Operating Temperature

0 to 85 Degree Centigrade (+/- 5%)

Surge Protection

2.5 KVA

Safety Protections

Over Voltage, Over Current, Temp, Control,Output Short circuit, Voltage surge.

Design Compliance

CE & RoHS Certifications

Output Polarity

DC+ P4, P5 & DC- P7, P8

Ethernet Port

Gigabit

Dimensions

1 x 10/100/1000BASE-T Port

Input Voltage (AC)

Universal 100 – 300V AC

Output Voltage (DC)

48V

Output Current (DC)

0.500A and 0.625A

Output Wattage

24W and 30W

Model Number

ER IoT – PoE 48V_24W and ER IoT – PoE 48V_30W

PoE Compliance

IEEE 802.3af/at Compliant PDS

Specification

Detail Description

Output Voltage Rating

5*24V DC Ports

Output Current Rating (Max)

1A

Output Connector

10 Pin Plug In Terminal Block 300V @ 8Amp

Input Voltage Rating

AC 110 – 300 V

DVR Voltage &
Current Rating

4 Cameras each 0.3 + 1 DVR with 0.5 Amp,

Battery Type

Li-Ion

Battery Cycle (Expected)

300 Cycles

Power Back up Time

2-8 hours

Battery Capacity

2000 mAH

Indicators

Mains, Output and Low Battery

Dimensions

180 MM(L) x 60 MM (W) x 35 MM (H)

Weight

<= 350 Grams

Enclosure Type

Heat Resistant ABS

Surge Protection

Upto 2KVA

Available in

12V & 24V

FAQs

Discover quick answers to your most pressing inquiries about our IoT UPS solutions, from operational specifics to integration queries. Dive into our FAQs to enhance your understanding of how our innovative UPS can streamline your IoT needs.

 Yes, it is a Gigabit LAN port.

Yes, there are 12V / 24V / 48V variants available. Please make sure to order the appropriate device.

Device is Passive PoE.

 Yes, the device is designed and manufactured in India.
