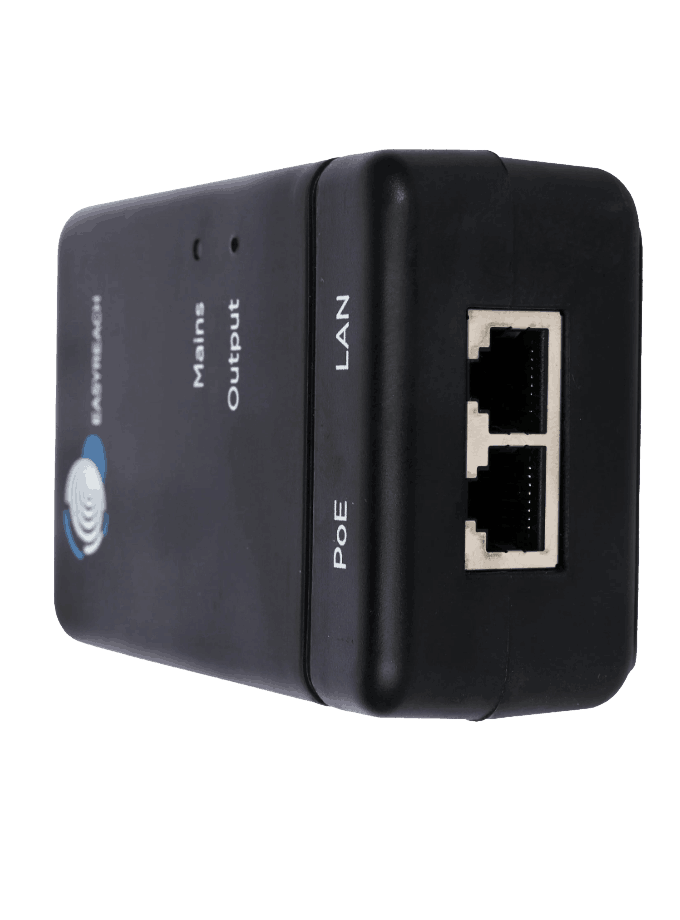

48V 24W PoE Adapter
Product Overview
Powering Connectivity with PoE Injector
48V PoE adapter/injector powers LoRaWAN Gateway, WiMAX Antennas, PTZ Cameras etc. 1Gb LAN port ensures reliable connectivity. Certified under CE, RoHS, safety standards, product is trusted by Telecom Operators, MVNO, WiFi network providers and enterprises.
- Reliable power supply to LoRaWAN Gateway and WiMAX antennas.
- A cost-conscious choice without compromising on quality.
- Plug – N – Play installation, no configuration needed
- High safety with short circuit protection
- CE & RoHS Certified
- Supports Gigabit speed
Plug and Play
WiMAX, LoRa Gateway, and PoE devices
Effortless Integration
Ready-to-deploy, facilitating immediate use in field operations.
Wide Compability
Compatible With variety of equipment from Cisco, Motorola etc.
Surge Protection
Surge Protection, short circuit protection etc.
Plug and Play
WiMAX, LoRa Gateway, and PoE devices
Effortless Integration
Ready-to-deploy, facilitating immediate use in field operations.
Wide Compability
Compatible With variety of equipment from Cisco, Motorola etc.
Surge Protection
Surge Protection, short circuit protection etc.
Applications of 48V 24W PoE Adapter:
IP cameras:
A 48V 24W PoE adapter is commonly used to provide a stable power supply to IP cameras or PTZ cameras such as dome cameras, bullet cameras, fixed cameras, wireless cameras. These cameras are installed far from power source and the easiest way to carry power to these Cameras is by using 48V PoE adapters. The camera current consumption surges as the activities increase. EasyReach 48V PoE adapter supports changing current requirements of the Camera.
Base stations:
Many of the base stations require power supply of 48V 24W. These base stations are expensive and need to be guarded from surge. EasyReach PoE adapter provides 2KVA surge protection along with other protections such as short circuit, over voltage, under voltage etc. This ensures the expensive base station is guarded all the time and functions flawlessly. 1Gbps ethernet ensures that the data speed is not compromised.
Gateways:
48V 24W PoE adapters are commonly used in gateways. The EasyReach gateway acts as a communication hub in the network. It is commonly used in smart homes, industrial areas, and surveillance systems for communication with connected devices.
EasyReach PoE adapters ensure required bandwidth via its 1Gbps port and provide adequate power supply.Â
Features of PoE Adapter
Current and Voltage Range:
This PoE adapter provides 48-volt current and 24-wattage. This adapter supports high-power devices using an ethernet cable.Â
Cable:
48V 24W PoE adapter uses a single ethernet cable for transmitting data. It can take the voltage across 100-meter cable.
Compatibility:
This PoE adapters are connected to industrial devices. These devices are compatible with most of the devices that work on passive PoE adapters.
Technical Specification
Specification
Values
PoE
In-built PoE
Enclosure type
ABS Plastic
Approx. Weight
80 GM
Enclosure Dimension
115 MM(L) x 65 MM (W) x 35 MM (H)​
Operating Temperature
0 to 85 Degree Centigrade (+/- 5%)
Surge Control
2.5 KVA
Protection
Over Voltage, Under Voltage, Over Current, Under Current, Temp. Control, output short circuit, Inputvoltage Spike
Design Compliance
CE & RoHS Certifications
Output Polarity
DC+ P4, P5 & DC- P7, P8
Ethernet Port​
Gigabit
Input Voltage
100 – 300V AC/DC
Output Voltage
48V DC
Output Current
0.5 Amp
Output Wattage
24W, 30W (based on requirement)
Model Number
ER IoT – PoE 48V_24W
PoE Compliance
IEEE 802.3af/at Compliant PDS
FAQ's
Discover quick answers to your most pressing inquiries about our IoT power solutions, from operational specifics to integration queries. Dive into our FAQs to enhance your understanding of how our innovative power adapters can streamline your IoT needs.
 Yes, it is a Gigabit LAN port.
Yes, there are 12V / 24V / 48V variants available. Please make sure to order the appropriate device.
Device is Passive PoE.
Yes, we are the OEM of this product and we can support.
 Yes, EasyReach devices are designed and manufactured in India.
