BLE Beacon
Plug n Play
Just stick it on your assets to be tracked
Effortless Integration
Start monitoring your assets on dashboard.
Wide Compability
Supports iBeacon, Eddystone, Classic, AltBeacon
Battery life
1 Year Battery life
Precision Depth
Profining
Accurate to 5mm, ensuring trench compliance with depth requirnments.
Cloud
Sync
Real-time data to the cloud via a reliable Mobile WiFi connection.
Effortless
Integration
Ready-to-deploy, facilitating immedate use in field operations.
Time
Saver
Cuts manual measurenment time by up to 50%, boosting field productivity.

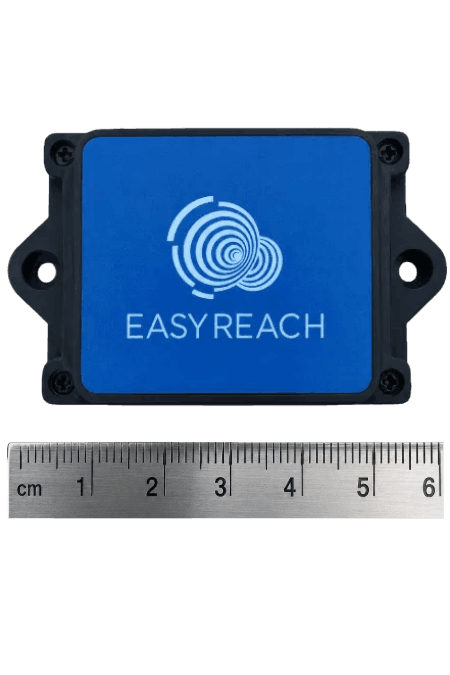

Product Overview
The Easy-BLE V1.1 module is a compact, low-power Bluetooth Low Energy (BLE) 5.3-complaint solution designed specifically for beacon and asset tracking applications Used widely in asset tracking applications, due to its compact size and battery life Designed and manufactured in India, the device can be configured to beacon at different time intervals as per the requirement of the customer. The device is capable of supporting iBeacon,Eddyston and Classic Bluetooth options. The ABS plastic based IP65 enclosures that device is secured inside a sturdy enclosure and safe from water and dust. Variety of industrial applications use the beacon for
- Monitoring retail refrigerators spread across cities
- Monitoring Froklifts inside factory premise
- Monitoring assets in factory-identify missing asstes
- Find keys
- Monitoring Telecom batteries inside Telecom Towers
Besides, it provides seamless connectivity with enhanced and security features, while offering ease of pre-configuration and operation without the need for complex software programming. The small form factor, combined with low power consumption, makes it perfect for a wide range of applications such as industrial, retail, and IoT.
Key Features
Privacy
- Enhanced Primary Mode: Supports resolvable private addresses for secure communication.
Memory
- 4KB eFuse Memory: Stores advertising payloads, manufacturer ID’s and configuration settings.
- 4KB SRAM: Dynamically stores advertising data for flexible payload management.
Low Power Consumption
- Sub-microwatt Operation: Enables multi-year operation using a tiny battery, making it suitable for remote deployments.
- Sleep Mode: Consumes less than 650nA with 24MHz RC oscillator running, extending battery life.
Power Supply
- Low Leakage: Operates within a voltage range of 1.1V to 3.6V batteries
Beacon and Asset Tracking Applications
Beacon Functionality
- Retail and Location Based Services: The Easy-BLE V1.1 enables retail beacons for promotional notifications, product information and indoor location services.
Asset Tracking
- Real-Time Location Systems: Ideal for tracking assets such as equipment, and personnel within facilities. The Easy-BLE V1.1 beacon can be attached to asses to provide real-time updates on their inddor location, significantly reducing loss and improving operational efffeciency.
Typical Application
- Monitor retail, refrigerator spread across cities
- Monitor Froklifts inside factory premise
- Monitor assets in factory-identify missing asstes
- Find Keys
Specification
Value
Bluetooth Version
BLE 5.3
Operating Voltage
1.1V - 3.6V
Operating Temperature
-40 °C to + 60°C(Industrial)
Package Type
ABS Enclosure
Power Backup
6 Months- 1 Year (based on Configuration)
Communication Range
40+ meters line of site
Cell
Coin Cell
Replacable Cell
Yes
Beaconing Interval
Ranges from 10 seconds to 1 min (based on Configuration)
Dimensions
25 mm x 25 mm x 10 mm
Weight
10 gm
IP Rating
65
Supports
iBeacon, Eddystons, Classic (based on Configuration)
Acceleration Sensor
No (Choose Easy-BLE V6)
Temperature Sensor
No (Choose Easy-BLE V6)
Parameter
Value
Bluetooth Version
BLE 5.3
Operating Valtage
1.1V - 3.6V
Sleep Mode Current
<650nA
Operating Temperature
-40 °C to +60 °C (industrial)
Package Type
ABS Enclosure
Power Backup
6 months to 1 year (based on Configuration)
Communication Range
40+ meters line of site
Cell
Coin Cell
Replaceble Cell
Yes
Beaconing Interval
Ranges from 10 seconds to 1 min (based on Configuration)
Dimensions
25 mm x 25 mm x 10 mm
Weight
10 gm
IP65
Yes
Support
iBeacon, Eddystone, Classic (based on Configuration)
Acceleration Sensor
No (Choose Easy-BLE V6)
Temperature Sensor
No (Choose Easy-BLE V6)
FAQs
Discover quick answers to your most pressing inquiries about our IoT UPS solutions, from operational specifics to integration queries. Dive into our FAQs to enhance your understanding of how our innovative UPS can streamline your IoT needs.
Yes, we do have. Look at our ER-BLE-V5 version.
The battery life depends on beacon internal and the battery capacity. We are flexible to provide you higher battery at a extra cost. The normal configuration should last for ~1 year. Do reach out to us at [email protected]
Yes, the device is designed and manufactured in India.
Yes, we can do that too. However, it depends on the quantity. Do reach out to [email protected]
