48V 65W SMPS
Plug n Play
Stable power supply at regulated voltage
Effortless Integration
Ready-to-deploy, facilitating immediate use in field operations.
Wide Compability
Camera setups, industrial gateways.
High Safety
Surge protection, over voltage, under voltage, short circuit.
Precision Depth
Profining
Accurate to 5mm, ensuring trench compliance with depth requirnments.
Cloud
Sync
Real-time data to the cloud via a reliable Mobile WiFi connection.
Effortless
Integration
Ready-to-deploy, facilitating immedate use in field operations.
Time
Saver
Cuts manual measurenment time by up to 50%, boosting field productivity.
Product Overview

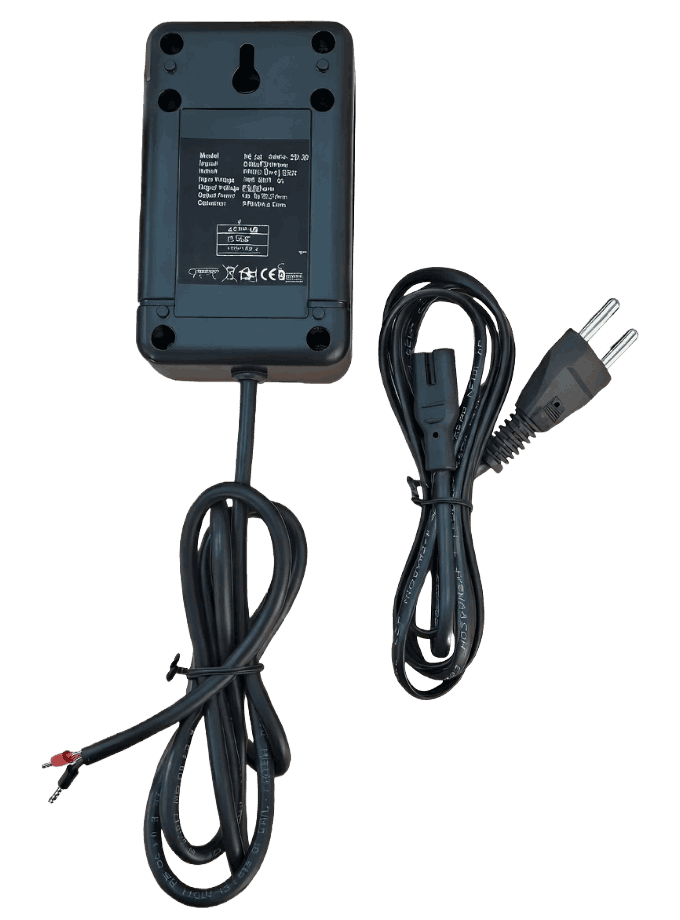

48V 65W SMPS (Switch Mode Power Supply) is a technology that is used to provide electric power to devices. SMPS is designed with over-voltage, over-current, under-voltage, under-current and output short-circuit protections. This SMPS was built using ABS plastic material. This SMPS used the latest 5mV IC technology.
48V 65W SMPS has higher efficiency with a small size. These SMPS are linear power supplies with handle load during operation. 48V 65W SMPS is used to supply low power voltage for both industrial and domestic applications. It can handle long voltage fluctuations and make them stable.
Applications of 48V 65W SMPS:
The applications of 48V 65W are network switches and IP cameras.
1. Industrial Switch:
A Industrial switch is a hardware device. It connects devices with the network and transfers data using an IP address. Network switches used in computers, printers, servers, etc.
Types of Network Switch:
Virtual Switch:
A virtual switch is a software program used in a virtual machine hosting environment. It manages traffic in a large environment. This switch has two types standard virtual and distributed virtual switch.
PoE Switches:
PoE switches provide power to connected devices like IP cameras, and phones through the same Ethernet cable. It is used for data transmission.
Managed Switches:
Managed switches used to monitor and control changes on the network. Users can manage each port of switch. It gives features that are Quality of Service (QoS), security settings, and port monitoring.
Unmanaged Switches:
An unmanaged switch is a simple device with monitoring configuration changes. It is used for small networks or home devices.
Many of these industrial switches power up with 48V DC input supply. EasyReach SMPS provides stable 48V DC Output.
2. IP camera:
IP (Internet Protocol) cameras are cost-efficient, used in home security, traffic monitoring, and healthcare facilities, etc. IP camera is used to receive and send video data on the network. IP cameras support both local and remote monitoring.
Types of IP cameras are Dome cameras, Bullet cameras, Fixed cameras, wireless cameras, etc. IP cameras support local storage, SD card, or cloud-based storage.
Application:
Home:
IP cameras are used for monitoring door entrances, yards, etc. It is commonly used in smart homes to avoid safety issues.
Business and Office:
IP cameras are used inside or outside of offices to monitor all activities and it is important for employee security.
Public Places:
IP cameras are widely used for public safety. IP cameras are available on roads, airports, train stations, and shopping malls, to monitor activity and enhance security.
Industrial Area:
IP cameras are used in Industrial areas such as factories and warehouses to monitor production lines, enhance asset security, manage all activities, etc.
Variety of Industrial Cameras and NVR work on 48V input power supply. EasyReach SMPS provides required voltage with stable current to these equipments.
Specification
Details/Description
Surge Control
Upto 2.5 KV
Input Voltage
100-300V AC/DC
Input Frequency Range
50 Hz or 60 Hz (Universal Frequency Supported)
No Load Input Current
0.76 uA
No Load Input Power
5mW (Latest Technology IC Used)
In Rush Load Current
1.35A Maximum
Output Voltage Range
48V DC (3% voltage variation at full load of 65watt)
Output PolariOutput Ripple & Noise (mV)
80mV at full 1.35Aty
Output Voltage
48V DC
Output Current
1.35 Amp
Protection
Voltage(Over, Under), Current (Over, Under), Temp. Control, output Short circuit, Input voltage Spike
Enclosure Material
ABS Platic
Dimension
65W x 115L x 65H mm
Approx. Weight
150 GM
IP Rating
54
Temperature
10-60°C
Model
ERIoT-SMPS
Specification
Detail Description
Surge Control
Upto 2.5 KV
Input Voltage
100-300V AC/DC
Input Frequency Range
50 Hz or 60 Hz (Universal Frequency Supported)
No Load Input Current
0.76 uA
No Load Input Power
5mW (Latest Technology IC Used)
In Rush Load Current
1.35A Maximum
Output Voltage Range
48V DC (3% voltage variation at full load of 65watt)
Output Ripple & Noise (mV)
80mV at full 1.35A
Output Voltage
48V DC
Output Current
1.35 Amp
Protection
Over Voltage, Under Voltage, Over Current, Under Current, Temp. Control, output Short circuit, Input voltage Spike
Enclosure Material
ABS Platic
Enclosure Dimension
65W x 115L x 65H mm
Approx. Weight
150 GM
Protection
IP54
Temp
10-60°C
Model
ERIoT-SMPS
FAQs
Discover quick answers to your most pressing inquiries about our IoT UPS solutions, from operational specifics to integration queries. Dive into our FAQs to enhance your understanding of how our innovative UPS can streamline your IoT needs.
Yes, the product is CE & RoHS Certified.
Yes, contact [email protected] and check with our sales team.
Yes, contact [email protected] and check with our sales team.
Yes, we are the OEM of this product and we can support.
Yes, the device is designed and manufactured in India.
