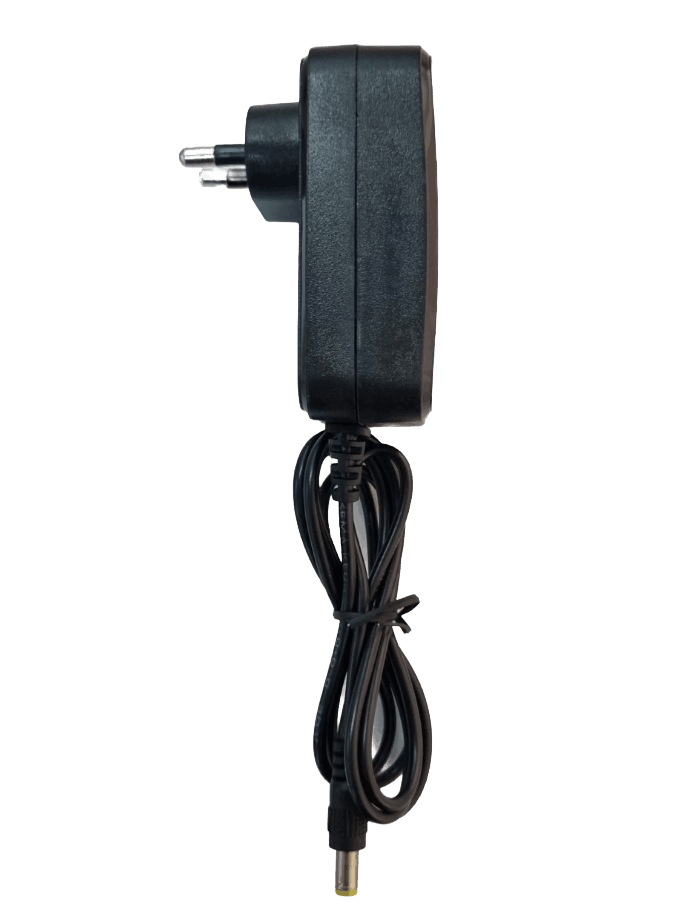

48V 0.5A 24W AC to DC adapter
Product Overview
The 48V 0.5A 24W AC to DC adapter is compact and energy efficient. This adapter is portable and easy to install. It protects devices up to 2.5kv surge protection. A 48V 0.5A 24W adapter is used also used for VoIP phones. Device comes with multiple protections such as Over Voltage, Under Voltage, Over Current, Under Current, Temp. Control, output short circuit, Input voltage Spike. It works on 100-300V AC Input.
Plug and Play
WiMAX, LoRa Gateway, and PoE devices
Effortless Integration
Ready-to-deploy, facilitating immediate use in field operations.
Wide Compability
Compatible With variety of equipment from Cisco, Motorola etc.
Battery life
Surge Protection, short circuit protection etc.
Plug and Play
WiMAX, LoRa Gateway, and PoE devices
Effortless Integration
Ready-to-deploy, facilitating immediate use in field operations.
Wide Compability
Compatible With variety of equipment from Cisco, Motorola etc.
Battery life
Surge Protection, short circuit protection etc.
VoIP Phone
A VoIP phone is a Voice Over Internet protocol telephone device. A 48V 0.5A 24W adapter is used to power VoIP phone.
The device support multiple OEMs such as Motorola, Cisco, etc.
Industrial Devices
Industrial Gateways:
There are multiple Industrial Gateways that are powered using 48V. The current requirement of these gateways may increase while data transmission. 48V 0.5A rating becomes suitable for such devices.
Technical Specification
Specification
Values
Surge Control
2.5 KVA
Input Voltage
100 – 300V AC/DC
Input Frequency Range
50 Hz or 60 Hz (Universal Frequency
Supported) AC/DC
No Load Input Current
0.76 uA
No Load Input Power
5mW (Latest Technology IC Used)
In Rush Load Current
0.625A Maximum
Output Voltage Range
48V DC (3% voltage variation at full load of
30watt)
Output Ripple & Noise(mV)
80mV at full 0.625A
Output Voltage
48V DC, Molex Connector (Micro-Fit 3.0)
Output Current
0.5 Amp
Protection
Over Voltage, Under Voltage, Over Current, Under Current, Temp. Control, output short circuit, Inputvoltage Spike
Enclosure type
ABS Plastic
Enclosure Dimension
50W x 80L x 25H mm
Approx. Weight
60 GM
IP rating
54
Temperature
10-60°C
FAQ's
Discover quick answers to your most pressing inquiries about our IoT power solutions, from operational specifics to integration queries. Dive into our FAQs to enhance your understanding of how our innovative power adapters can streamline your IoT needs.
Yes, the product is CE & RoHS Certified.
Yes, contact sales@easyreach.co.in and check with our sales team.
Yes, contact sales@easyreach.co.in and check with our sales team.
Yes, we are the OEM of this product and we can support.
Yes, EasyReach devices are designed and manufactured in India.
