BLE Beacon
Plug n Play
Just stick it on your assets to be tracked
Effortless Integration
Start monitoring your assets on dashboard.
Wide Compability
Supports iBeacon, Eddystone, Classic, AltBeacon
Battery life
1 Year Battery life

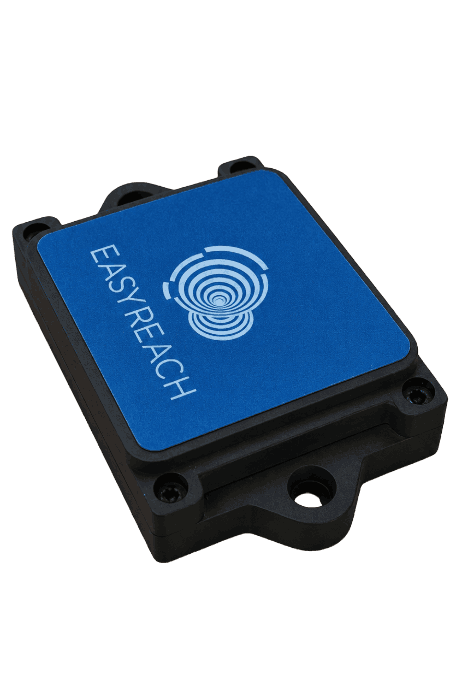

BLE Beacon - Overview
The ER-BLE-V2.3 module is a small-size BLE beacon, low-power Bluetooth Low Energy (BLE) 5.3-complaint solution designed specifically for ble beacon and industrial asset tracking widely used in industrial material handling, due to its compact size and battery life Designed and manufactured in India, the device can be configured to beacon at different time intervals as per the requirement of the customer. The device is capable of supporting iBeacon, Eddyston and Classic Bluetooth options. The ABS plastic based IP65 enclosures that device is secured inside a sturdy enclosure and safe from water and dust. Variety of industrial applications use the bluetooth beacon for
- Monitoring retail refrigerators Temperature
- Track live Froklift location inside factory premise
- Monitoring assets in factory-identify missing asstes
- Find keys
- Monitoring Telecom batteries inside Telecom Towers
Besides, it provides seamless connectivity with enhanced and security features, while offering ease of pre-configuration and operation without the need for complex software programming. The small form factor, combined with low power consumption, makes it perfect for a wide range of applications such as industrial, retail, and IoT.
Key Features
Privacy
- Enhanced Primary Mode: Supports resolvable private addresses for secure communication.
Memory
- 4KB eFuse Memory: Stores advertising payloads, manufacturer ID’s and configuration settings.
- 4KB SRAM: Dynamically stores advertising data for flexible payload management.
Low Power Consumption
- Sub-microwatt Operation: Enables multi-year operation using a tiny battery, making it suitable for remote deployments.
- Sleep Mode: Consumes less than 650nA with 24MHz RC oscillator running, extending battery life.
Power Supply
- Low Leakage: Operates within a voltage range of 1.1V to 3.6V batteries
BLE Beacon and Asset Tracking Application
Beacon Functionality
- Retail and Location Based Services: The ER-BLE-V2.3 enables retail beacons for promotional notifications, product information and indoor location services.
Asset Tracking
- Real-Time Location Systems: Ideal for tracking assets such as manufaturing equipment, material box, warehouse pallets, and personnel within facilities. The ER-BLE-V2.3 beacon can be attached to assets to provide real-time updates on their indoor position, significantly reducing loss and improving operational efffeciency.
Typical Application of BLE Beacon
- Monitor retail, refrigerator spread across cities
- Monitor Forklifts inside factory premise
- Monitor assets in factory-identify missing assets
- Find Keys
- Pallet tracking
- Fork lift tracking and utilization optimization
- Temperature monitoring inside Refrigerator
- People / Employee tracking
- Industrial asset tracking
- Medical equipment tracking inside hospitals
- Moving assets Route tracking
Specification
Value
Bluetooth Version
BLE 5.3
Operating Voltage
1.1V - 3.6V
Operating Temperature
-40 °C to + 60°C(Industrial)
Package Type
ABS Enclosure
Power Backup
6 Months- 1 Year (based on Configuration)
Communication Range
30 - 40 meters line of site
Cell
Coin Cell
Replacable Cell
Yes
Beaconing Interval
Ranges from 10 seconds to 1 min (based on Configuration)
Dimensions
25 mm x 25 mm x 10 mm
Weight
10 gm
IP Rating
65
Supports
iBeacon, Eddystons, Classic (based on Configuration)
Acceleration Sensor
No (Choose Easy-BLE V6)
Temperature Sensor
No (Choose Easy-BLE V6)
ER-BLE-V1.1 Also Available
Parameter
Value
Bluetooth Version
BLE 5.3
Operating Valtage
1.1V - 3.6V
Sleep Mode Current
<650nA
Operating Temperature
-40 °C to +60 °C (industrial)
Package Type
ABS Enclosure
Power Backup
6 months to 1 year (based on Configuration)
Communication Range
40+ meters line of site
Cell
Coin Cell
Replaceble Cell
Yes
Beaconing Interval
Ranges from 10 seconds to 1 min (based on Configuration)
Dimensions
25 mm x 25 mm x 10 mm
Weight
10 gm
IP65
Yes
Support
iBeacon, Eddystone, Classic (based on Configuration)
Acceleration Sensor
No (Choose Easy-BLE V6)
Temperature Sensor
No (Choose Easy-BLE V6)
FAQs
Discover quick answers to your most pressing inquiries about our BLE based tracking system, from operational specifics to integration queries. Dive into our FAQs to enhance your understanding of how the technology works.
Yes, we do have. Look at our ER-BLE-TEMP-V1.1 version.
The battery life depends on beacon internal and the battery capacity. We are flexible to provide you higher battery at a extra cost. The normal configuration should last for ~1 year. Do reach out to us at sales@easyreach.co.in
Yes, EasyReach devices are designed and manufactured in India.
Yes, we can do that too. However, it depends on the quantity. Do reach out to sales@easyreach.co.in
