EasyReach Pulse Bluetooth Relay

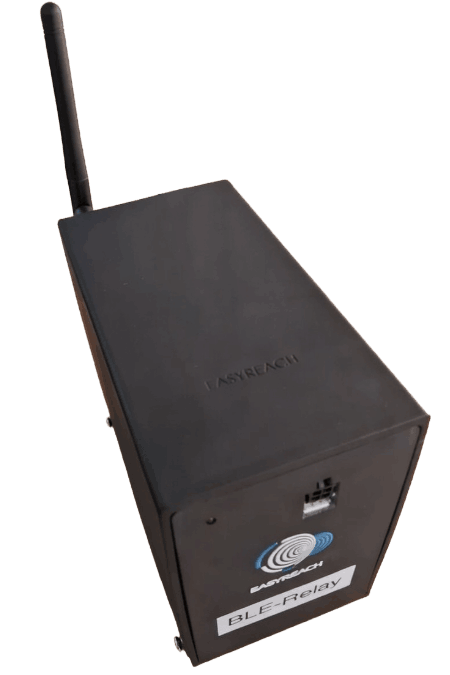

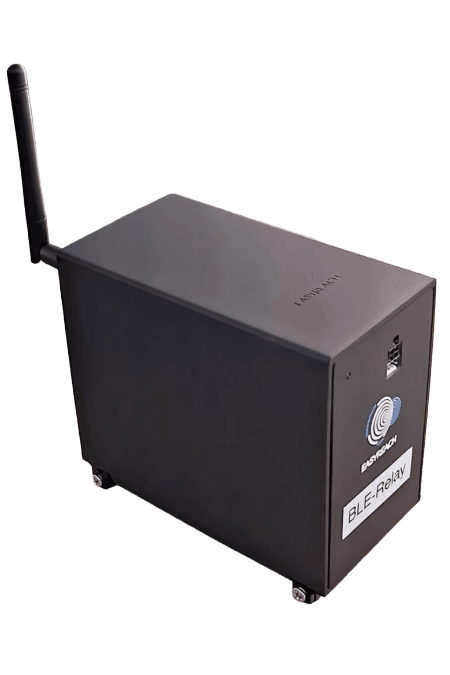

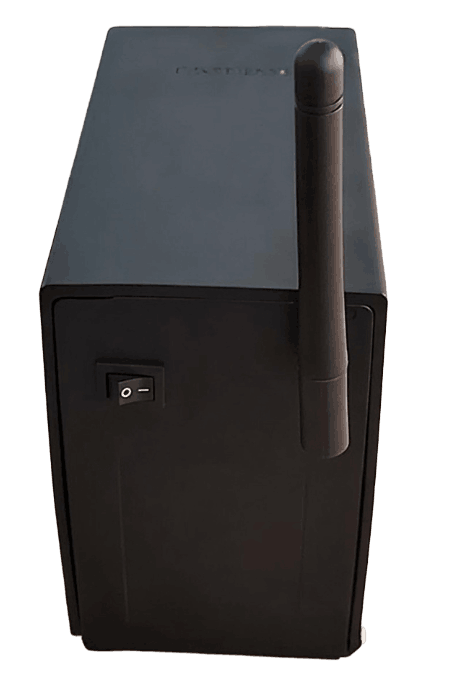

Overview of Pulse Bluetooth Relay
The Pulse Bluetooth Relay is the essential bridge component in industrial BLE asset tracking setup. Battery powered Relay, is designed to receive, continues flow of communication initiated by Microscanners to Mesh Gateway. Placed strategically, it overcomes distance limitations, physical barriers, and signal congestion—ensuring no data is lost on its journey to the cloud.
Identical in robust 2 kg build to the Microscanner, it is purpose-designed to receive, organize, and forward large volumes of beacon data from multiple Microscanners to your central BLE gateways. Placed strategically, it overcomes distance limitations, physical barriers, and signal congestion—ensuring no data is lost on its journey to the cloud.
Plug and Play
Just mount on wall and scan nearby ble devices
Effortless Integration
Start monitoring your assets on dashboard.
Wide Compability
Supports iBeacon, Eddystone, Classic, AltBeacon
Mains Power
Stable Power Supply
Plug and Play
Just mount on wall and scan nearby ble devices
Effortless Integration
Start monitoring your assets on dashboard.
Wide Compability
Supports iBeacon, Eddystone, Classic, AltBeacon
Battery life
Stable Power Supply
Advantages of Pulse Bluetooth Relay
- Extends coverage range significantly in large factories, warehouses, and outdoor yards
- Handles data from multiple Microscanners at the same time
- Reduces workload on BLE gateways by aggregating and compressing data
- Provides plug-and-play simplicity with zero complex configuration
- Improves overall system resilience and prevents data loss
- Enables cost-effective scalability without adding extra gateways
- Delivers seamless integration with Microscanners and Mesh gateways
Technical Specification
Specification
Values
Bluetooth Version
BLE 5.1
Model Name
ER-relay-V1.1
Package Type
ABS Plastic
Communication Range
30 to 40 meters
Dimensions
140 mm x 72 mm x 115 mm
Weight
2 kg
WiFI
Supported communication with Cloud
FAQ's
Discover quick answers to your most pressing questions about our BLE-based tracking system, from operational specifics to integration queries. Dive into our FAQs to enhance your understanding of how the technology works.
It can detect around 50 Bluetooth devices in a single scan cycle.
Approximately 40 meters line of site on both directions should be fine. If there are impediments or metal objects or wall, the range will drop.
Press settings buttons for 10 seconds, the device will create a Hotspot. Connect to the hotspot and visit http://192.168.1.100 on your Browser. A settings page will appear for you to change configuration.
Yes, EasyReach devices are designed and manufactured in India.
