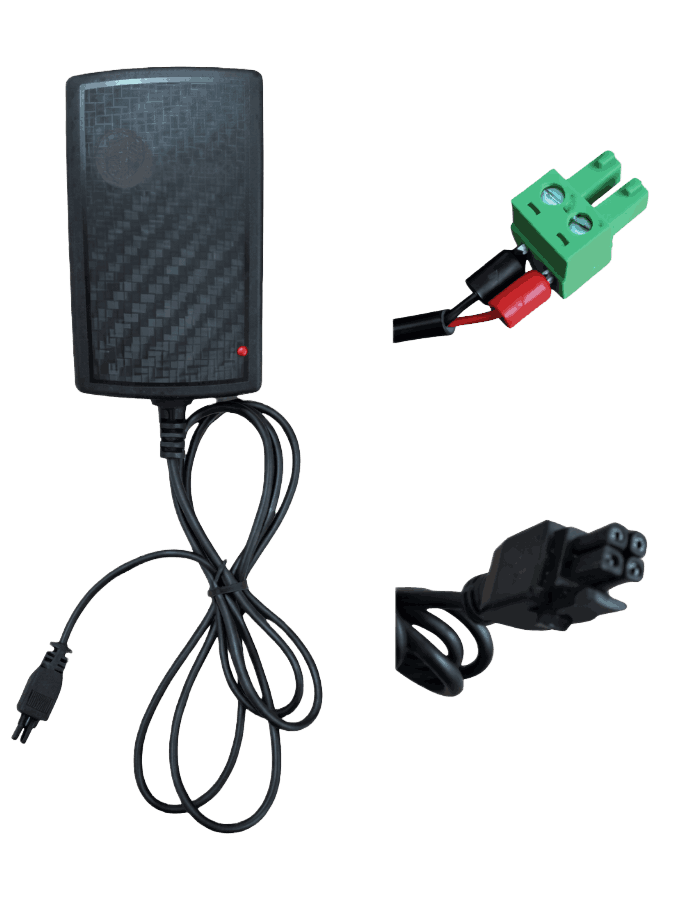

12V 2A Adapter with Molex Connector
Product Overview
A 12V 2A adapter with a Molex connector is an industry grade power adapter. It provides stable 12 volts DC with a maximum output current of 2 amps to IoT devices. It is used for powering IoT and industrial devices. This adapter comes with inbuilt protection features such as over voltage, under voltage, over current, under current, temperature control, output short circuit, input voltage spike, etc.
The device uses GaN Tech, the latest technology used that ensures least temperature emission even at maximum current of 2A. It is lightweight and small and easy to use, carry and transport.
Plug and Play
Used for Industrial Gateway, Routers
GaN Tech Inside
Results in least thermal emission
Special Connector
Special Molex Connector
Current & Surage Protection
Inbuilt 2KVA surge protection
Plug and Play
Used for Industrial Gateway, Routers
GaN Tech Inside
Results in least thermal emission
Special Connector
Special Molex Connector
Current & Surage Protection
Easyreach ups protects
the connected router from
damage.
Features of 12V 2A Adapter with Molex Connector:
Voltage and Current Rating:
The input voltage of this adapter with Molex Connector is 100-300V AC/DC. It is designed for industrial applications that consume less electric power.
Adapter with Molex Connector:
Molex connect provides secured fitting inside the jack, there by reducing chances of failure due to power disconnection.
Compact Size:
12V 2A Adapter is a small size and lightweight adapter that is easy to use and transport.
Short-Circuit & Surge Protection:
Inbuilt MOV provides protection of upto 2KVA surge. Device also provides short circuit protection.
Energy Efficiency:
The new technology makes 12V 2A adapter with Molex connector more power and energy efficient. It is designed to save power loss during operation.
Cable Length:
The cable length of the 12V 2A adapter ranges from a few feet to several feet and is easy to connect devices.
Benefits:
- For use to safeguard the circuit from voltage surges
- For short circuit protection
- For handling proper outage wattage
- For handling the lightening surge up to 2kv
- Higher wattage and compact size
- It is environment friendly
- Ensure stable DC power
Technical Specification
Specification
Values
Surge Control
2 KVA
Enclosure type
Heat Resistant ABS
Input Voltage
100 – 300V AC/DC
Input Frequency Range
100 – 300V 50 Hz or 60 Hz (Universal Frequency
Supported)AC/DC
No Load Input Current
0.76 uA
No Load Input Power
5mW (Latest Technology IC Used)
In Rush Load Current
3A Maximum
Output Voltage Range
12V DC (3% voltage variation at full load of
30watt)
Output Ripple & Noise(mV)
80mV at full 2.5A
Output Voltage
12V DC, Molex Connector (Micro-Fit 3.0)
Cable Length
1.2 Meter
Indicators
Mains On
Protection
Over Voltage, Under Voltage, Over Current, Under Current, Temp. Control, output short circuit, Inputvoltage Spike
Enclosure Dimension
90mm x 55mm x 60mm (LxBxH)
Approx. Weight
80 GM
IP rating
54
Temperature
10-60°C
FAQ's
Discover quick answers to your most pressing inquiries about our IoT power solutions, from operational specifics to integration queries. Dive into our FAQs to enhance your understanding of how our innovative power adapters can streamline your IoT needs.
Yes, the product is CE & RoHS Certified.
Yes, contact sales@easyreach.co.in and check with our sales team.
Yes, contact sales@easyreach.co.in and check with our sales team.
Yes, we are the OEM of this product and we can support.
Yes, EasyReach devices are designed and manufactured in India.
