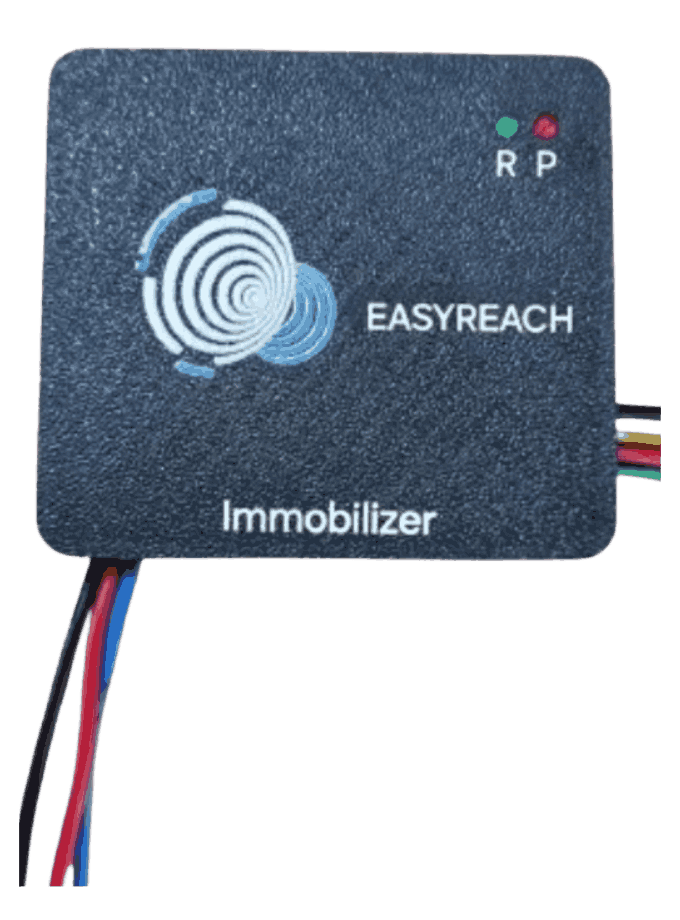

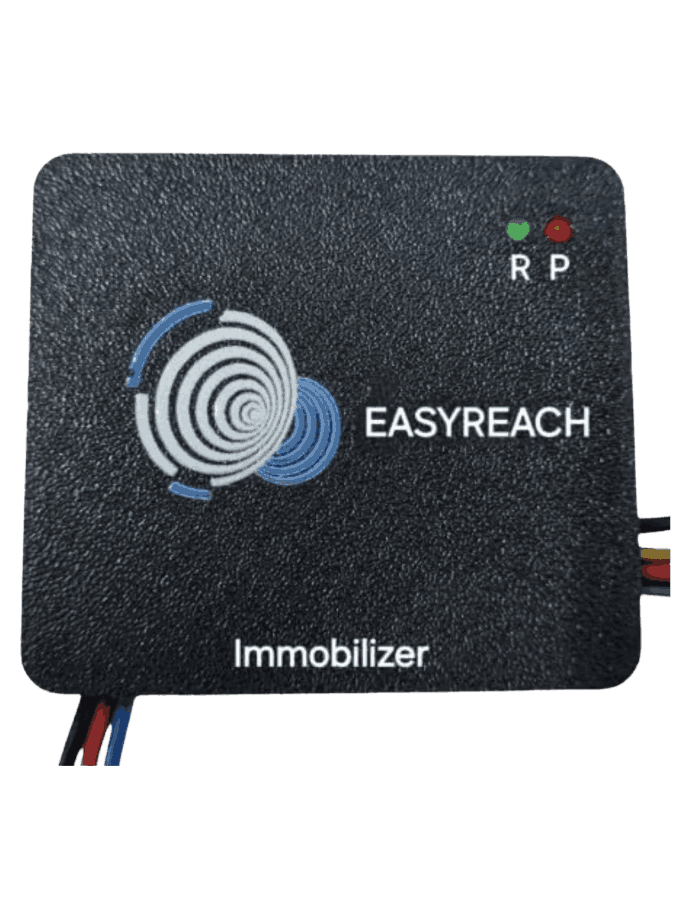

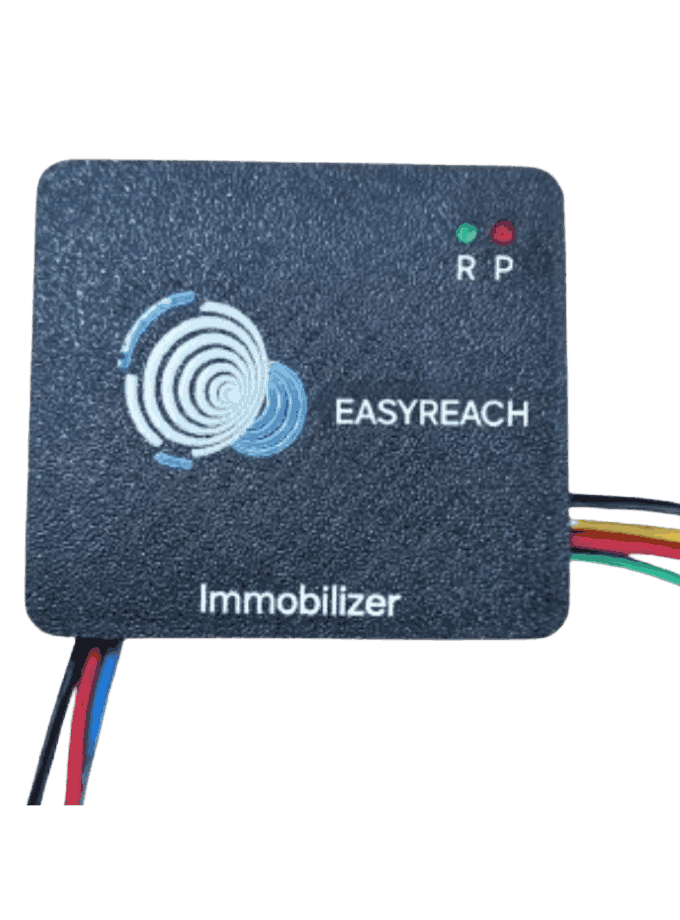

EasyReach Vehicle Immobilizer
Product Overview
A Vehicle Immobilizer is a device used to prevent vehicles from being accessed by unauthorized users and maintain electronic security. It works by vehicle’s engine system, starter making it only start with the authorized key. A Vehicle Immobilizer is used to increase vehicle safety and enhance security.
Plug and Play
Just stick it on your assets to be tracked
Effortless Integration
Ready-to-deploy, facilitating immediate use in field operations.
Wide Compability
Supports iBeacon, Eddystone, Classic, AltBeacon
Battery life
1 Year Battery life
Plug and Play
Just stick it on your assets to be tracked
Effortless Integration
Start monitoring your assets on dashboard.
Wide Compability
Supports iBeacon, Eddystone, Classic, AltBeacon
Battery Life
1 Year Battery life
Test Procedure
- Connect Ignition supply voltage to red wire w.r.t. ground i.e. 9V to 36V DC, variable power supply
- Connect Tracker digital output signal to green wire w.r.t ground on 5V to 12V @10mA
- Connect multimeter probes to the blue wire on the continuity test
- Gives the 9V DC supply to the red wire w.r.t. Black wire, When supply is 9V DC and test the continuity on the blue wire and Red Wire it is NO (Normally Open) and test the continuity on the blue wire and Black Wire it is NC Normally Close)
- Measure the voltage at yellow wire w.r.t. ground, It should be w.r.t red wire supply voltage. (Please consider voltage drop across the diode)
- The next step is to apply the 5V To 12V @10mA supply to a green wire
- Relay contact should be changed after time delay of 2 Second NO (Normally Open) to NC (Normally Closed) and NC (Normally Closed) to NO (Normally Open)
6 Lines on Immobilizer
- To know through one Digital Input to VTS that the immobilizer is connected i.e. 5V DC (1 Line)
- To the Immobilizer from VTS i.e One Digital Input Signal @ 5V to 12V @10mA (1 line)
- Digital Output – Relay – 1 CO Potential Free Contact (3 Lines)
- To connect to the ignition line i.e. 9-36V DC GND (1 Line)
- Ground (1 Line)
| Wires | Details |
|---|---|
|
Yellow Wire |
Immobilizer connected output voltage i.e. 5V DC or w.r.t. Ignition supply |
|
Red Wire |
Ignition supply voltage 9V to 36V DC |
|
Green Wire |
Tracker digital output signal i.e. 5V to 12 @ 10mA |
|
Black Wire |
Ground |
|
Blue wire |
Common |
|
Red Wire |
No (With respect to blue wire) |
|
Black Wire |
No (With respect to blue wire) |
Technical Specification
Specification
Values
Model Number
ER-SPD6kV-V2.0
Output Voltage
9-26V DC
DC Rated coil voltage
12V DC
Relay Current consumption
75 mA
Max load current
22A @ 30V DC Resistive
Operating temperature
-40°C To +85°C
Electrical endurance
100000 Ops
Standard to comply
ISO7637-1
LED
Immobilizer gets the Power from Vehicle Tracking System (VTS)9-26V DC
FAQ's
Discover quick answers to your most pressing inquiries about our IoT power solutions, from operational specifics to integration queries. Dive into our FAQs to enhance your understanding of how our innovative power adapters can streamline your IoT needs.
Yes, we do have. Look at our ER-BLE-V5 version.
The battery life depends on beacon internal and the battery capacity. We are flexible to provide you higher battery at a extra cost. The normal configuration should last for ~1 year. Do reach out to us at sales@easyreach.co.in
Yes, the device is designed and manufactured in India.
Yes, we can do that too. However, it depends on the quantity. Do reach out to sales@easyreach.co.in
