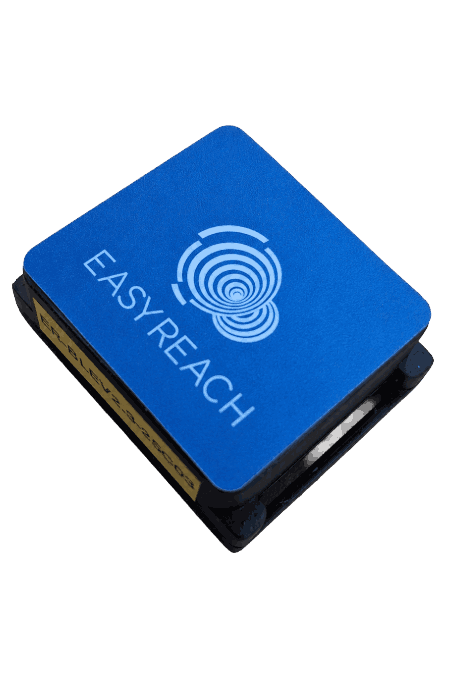

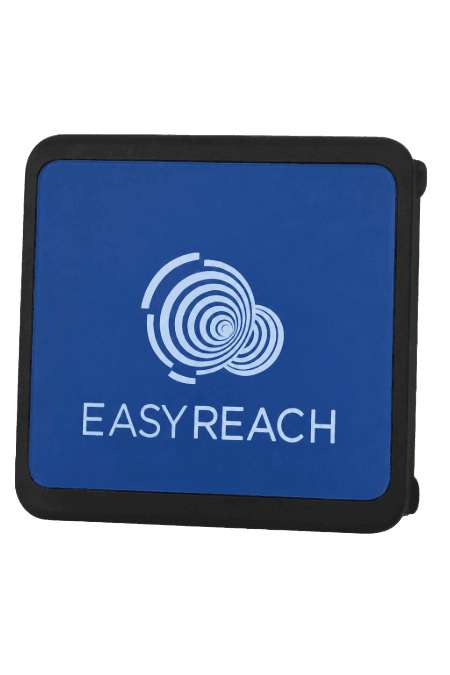

EasyReach Configurable BLE TX + RX Beacon
Configurable BLE TX+RX Overview
EasyReach configurable TX + RX Beacon is a new advanced version of the Bluetooth Low Energy beacon. It designed for continuously broadcast signals for industrial asset visibility, location awareness, and IoT applications.
The ER-Beacon-V1.2 has been restructured with next-level transmission capabilities delivering up to 1-year battery life. This bidirectional powerhouse doesn’t just broadcast—it listens, responds, and enables a stronger, smarter flow of real-time data.
Unlike standard TX-only beacons, this dual-mode BLE beacon is ideal for advanced tracking, proximity marketing, and two-way communication scenarios. Built on industry-standard iBeacon technology, the BLE Beacon TX + RX delivers reliable performance, long battery life, and flexible configuration options long-term deployments. This advanced virtual Bluetooth® LE (vBLE) technology performs exceptionally well without draining the battery faster.
Plug and Play
Just stick it on your assets to be tracked
Easy Configuration
Start monitoring your assets using nRF Connect App
Wide Compability
Supports iBeacon Protocol
Battery life
1 Year Battery life
Plug and Play
Just stick it on your assets to be tracked
Easy Configuration
Start monitoring your assets using nRF Connect App
Wide Compability
Supports iBeacon Protocol
Battery life
1 Year Battery life
Easy Configuration with nRF Connect
Managing your beacon network is simple. You don’t need to be a programmer to set up the EasyReach beacon. With the nRF Connect mobile app, you have full control over your hardware. You can easily manage:
- TX Power: Balance your signal strength and battery usage.
- Asset Organization: Use UUIDs, Major Numbers, and Minor Numbers to categorize your inventory, equipment, tools, or warehouse zones.
- Secure Access: Set custom passwords to protect your beacon settings from unauthorized changes.
- Performance Monitoring: Keep track of your beacon’s health and signal status in real-time.
Configurable Parameters
Using the nRF Connect application, administrators can customize beacon settings without specialized hardware.
- TX Power: Adjust the Bluetooth transmission power to optimize coverage range and battery consumption.
- Major Number: Assign a Major ID to group assets by department, warehouse zone, production line, or project location.
- Minor Number: Assign unique identifiers for individual assets, equipment, pallets, tools, or inventory items.
- UUID: Configure a custom Universal Unique Identifier (UUID) for secure and organized beacon deployments.
- Password Protection: Prevent unauthorized access to beacon settings through configurable password protection.
- Advertising Interval: Control how often the beacon broadcasts BLE packets for the perfect balance between tracking performance and battery life.
Adjustable Advertising Interval
The Advertising Interval controls how often the beacon tag sends its Bluetooth signal. Adjusting this setting allows you to balance tracking performance and battery life in industrial asset tracking applications.
Why the Advertising Interval Matters?
A shorter advertising interval:
- Provides faster asset detection
- Improves real-time tracking accuracy
- Increases signal visibility
A longer advertising interval:
- Extends battery life
- Reduces power consumption
- Ideal for long-term asset monitoring
Users can easily modify the advertising interval through the nRF Connect mobile application based on project requirements.
Technical Specification
Specification
Values
Bluetooth Version
BLE 5.3
Model No
ER-Beacon-V1.2
Operating Voltage
1.1V – 3.6V
Operating Temperature
40°C to 60°C
Package Type
ABS Enclosure
Communication Range
30 – 40 meters line of site
Communication
Bidirectional (TX + RX)
Cell
Coin Cell (Replaceble)

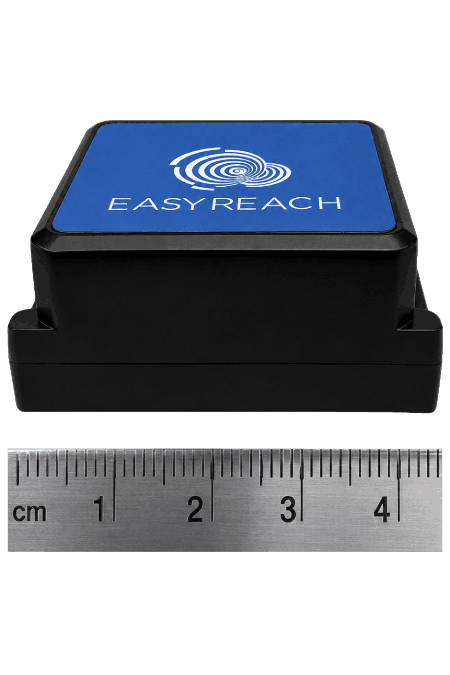

Dimension
36mm * 44mm * 18mm
Weight
10gm
IP Rating
65
security / Password Protected
Yes
Transmit Power
0 dB
Protocol
iBeacon
Battery Life
More Than 1 Year
Advertisement Types Supported
Legacy and Extended
FAQ's
Discover quick answers to your most pressing questions about our BLE-based tracking system, from operational specifics to integration queries. Dive into our FAQs to enhance your understanding of how the technology works.
Standard BLE beacons are data transmitter only, while the EasyReach Beacon-V1.2 supports Dual Mode (TX + RX) for two-way communication and advanced tracking.
Configuration is simple and user-friendly. You can easily set up the ER-Beacon using the free nRF Connect mobile app. No special programming knowledge is required.
Yes, we do have. Look at our ER-beacon-V4.1 version.
Standard BLE beacons are TX-only, while the EasyReach ER-Beacon-V1.7 supports Dual Mode (TX + RX) for two-way communication and advanced tracking.
The ER-Beacon-V1.2 offers an impressive battery life of more than 1 year, depending on the configured advertising interval and TX power settings. Do reach out to us at sales@easyreach.co.in
You can purchase the original EasyReach Configurable BLE TX + RX Beacon directly from our official website or authorized distributors.
Yes, EasyReach devices are designed and manufactured in India.
