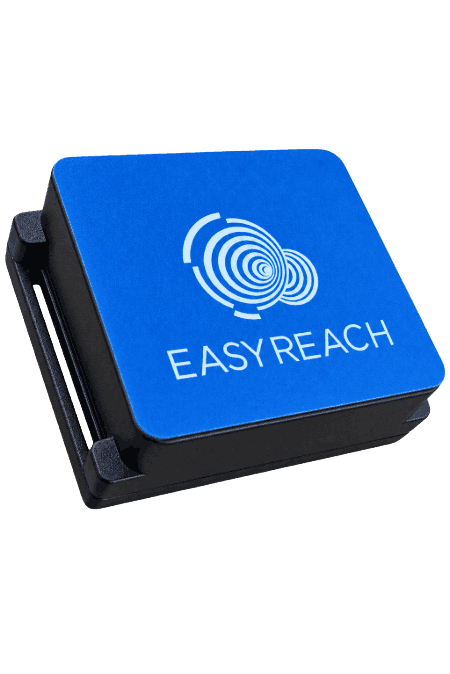

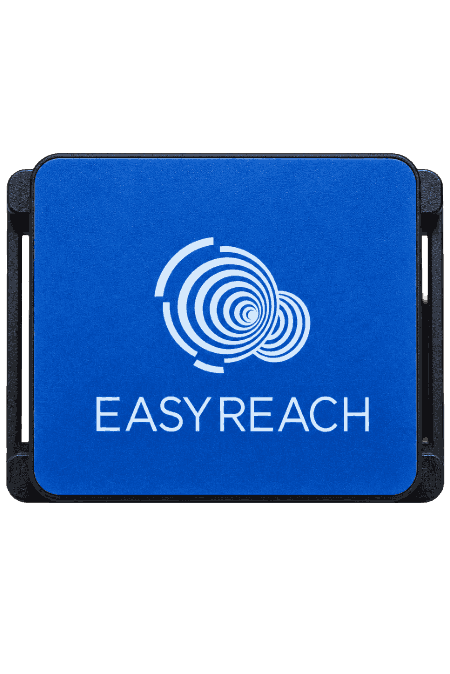

EasyReach Beacon Accelero Tag
Overview:
The EasyReach Accelero Tag is a compact Machine-motion detector. It combines BLE (Bluetooth Low Energy) connectivity with an integrated Acceleration Sensor designed to capture machine movement.
This wireless accelerometer can be easily attach on machines, allowing businesses to monitor machine activity, detect vibration, and support machine cycle counting without complex wiring. Simply attach the beacon sensor to the machines and monitor the collected motion data through a compatible mobile application, such as nRF Connect or the ER Bridge application.
How Does It Work?
The built-in acceleration sensor detects changes in machine movement. The detected acceleration is compared with the configured motion threshold to identify a motion event.
Machine Movement → Acceleration Detection (Vibration)→ Threshold Check → Motion Data
The tag can be configured and calibrated according to the machine’s vibration during operation.
The EasyReach BLE based Acceleration Tag provides a simple way to bring acceleration-based monitoring to industrial equipment.
Plug and Play
Place it on the machine to detect motion
Easy Configuration
Monitor your machine activity with our mobile app
Wide Compability
iBeacon, and Juniper Mist™ Compatible
Battery life
1 Year Battery life
Plug and Play
Place it on the machine to detect motion
Easy Configuration
Monitor your machine activity with our mobile app
Wide Compability
iBeacon, and Juniper Mist™ Compatible
Battery life
1 Year Battery life
Application
The EasyReach Beacon Tag for acceleration is suitable for:
- Machine motion monitoring
- Machine cycle counting
- Equipment activity monitoring
- Production monitoring
- Equipment utilization
- Idle-time monitoring
- Movement-based machine monitoring
It can also be used in applications where accelerometer vibration or repetitive movement is an indicator of equipment activity.
Key Features
- Wireless BLE Acceleration Tagfor machine monitoring
- Built-in acceleration motion sensor
- Configurable motion threshold
- Sensor calibration
- Machine movement and cycle detection
- Wireless Bluetooth Low Energy connectivity
- Compact and easy to install
- Easy configuration through mobile application
See the Accelero Tag in Action
Watch our product video to understand how the EasyReach Beacon Accelero Tag works and how it can be used for motion detection.
Technical Specification
Specification
Values
Bluetooth Version
BLE 5.3
Model No
ER-Beacon-V5.1
Operating Voltage
1.1V – 3.6V
Operating Temperature
40°C to 60°C
Package Type
ABS Enclosure
Communication Range
30 – 40 meters line of site
Cell
Coin Cell (Replaceble)
Dimension
36mm * 44mm * 18mm
Weight
10gm
IP Rating
65
security / Password Protected
Yes
Transmit Power
0 dB
Battery Life
More Than 1 Year
Advertisement Types Supported
Legacy and Extended
FAQ's
Discover quick answers to your most pressing questions about our BLE-based tracking system, from operational specifics to integration queries. Dive into our FAQs to enhance your understanding of how the technology works.
A standard BLE TX Beacon mainly broadcasts a BLE signal at regular intervals for identification or tracking. The EasyReach Accelero Tag includes an integrated acceleration sensor that detects machine movement and motion monitoring.
The tag can be connected and configured using the EasyReach application or nRF Connect application. Watch the demo: EasyReach Accelero Tag – Motion Detection Demo
No. The Accelero Tag uses Bluetooth Low Energy (BLE) communication, providing a wireless approach to machine motion monitoring.
It can be attached to machines, motors, pumps, compressors, production equipment, and other industrial equipment where movement can indicate machine activity.
You can purchase the original EasyReach Beacon Accelero tag directly from our official website or authorized distributors.
