BLE Beacon and Temperature/
Humidity Sensor

BLE Beacon and Temperture/Humidity Sensor

Range

Plug and play

10 to 40 meter based on line of site.

Effortless Integration

Ready-to-deploy

Stick it inside the refrigerator.

Wide Compability

WiFi Compability

Supports iBeacon, Eddystone, Classic, AltBeacon

Battery life

battery icon

1 Year Battery life

Product Overview

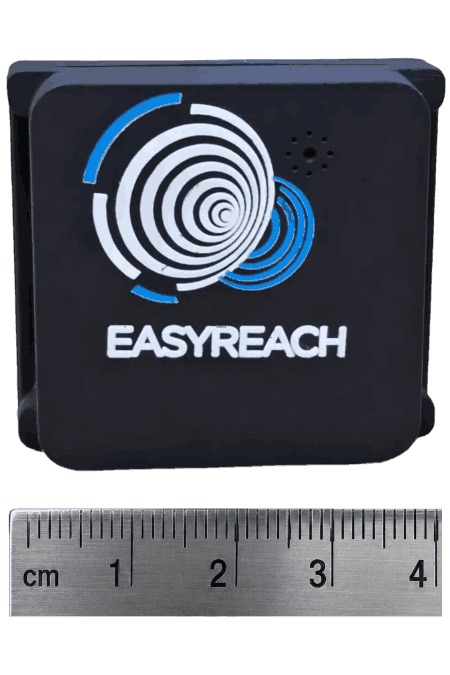

ER-BLE-TEMP-V1.1 Beacon with Temperature / Humidity sensor is small, cost-effective, and easy to install Temperature sensing device. The device captures Temperature and Humidity at a regular interval and beacons sends out the information. The device provides easy way to monitor temperature and humidity of retail refrigerator, vaccine refrigerators, cold storage, chillers, ice-cream refrigerator and many more things. With supported temperature range of -30°C to 75°C with 0.5°C of accuracy, business can rely on the accurate readings.

The device also stores 30000 readings in its internal memory which can be accessed using EasyReach Android Mobile Application. Do reach out to sales@easyreach.co.in to get hold of the mobile application.

Applications:

 BLE Beacon with temperature / humidity sensors used in the medical field, industrial areas, smart homes, asset tracking, retail, etc.

Medical field:

BLE Beacon with temperature / humidity sensor used to monitor patient body temperature, and help them in critical situations. It provides real-time data to the user and the user can take immediate action.

BLE Beacon with temperature / humidity sensor used for trace medicians and medical equipment. It helps to maintain sensitive medical things like vaccines, blood, and other types of equipment.

Industrial Area:

BLE Beacon with temperature sensor used to monitor temperature in warehouses, manufacturing plants, or server rooms for check condition stored goods. It is used to analyze correct and real-time data.

BLE Beacon with temperature / humidity sensor is a pocket-sized device with a long battery life. It is used to protect workers from dangerous conditions and dangerous types of machinery.

Smart Homes:

BLE Beacon with temperature / humidity  sensor devices are commonly used in smart home systems for monitoring environmental conditions. It is small so easy to place anywhere in the home without wiring. It is a trigger-based device that is managed by the user’s smartphone.

BLE Beacon with temperature / humidity sensor devices used in smart homes to optimize heating, ventilation, and air condition of room. Users can adjust the room condition using smartphones.

Asset Tracking:

BLE Beacon with temperature / humidity sensor devices is mostly used in asset tracking. It has a rechargeable battery. It is connected to the trucks, vehicles, and shipping containers. It helps to track the location of goods and prevent them from destroying.

BLE Beacon with temperature / humidity sensor devices used to improve asset management. It transmits temperature data and asset location to the cloud or local server for monitoring and analysis. This data is managed by the company owner with a unique ID of the tracking devices.

Retail:

BLE Beacon with temperature / humidity sensor devices used in retail stores for customer engagement. This device tracks and analyzes the movement of customers that engage with retail stores. It is used to offer a new product or discount to improve customer satisfaction.

BLE Beacon with temperature / humidity sensor devices used to collect and analyze data on foods and materials of retail stores. And manage the data by the retail store owner.

Features:

  • Monitor medical equipment, patient body temperature
  • Monitor retail, refrigerators spread across cities
  • Monitor temperature inside ice-cream trolleys
  • Monitoring temperature inside vaccine storage

Specification

Value

Bluetooth Version

BLE 5.3​

Operating Voltage

1.7-3.6V

Current Consumption-Sleep Mode

640nA at 3V

Enclosure Material

ABS Enclosure

Current Consumption-Tx Mode at 0dBm

9.6 mA at 3V

Battery life

Upto 1 years

Transmit Power

Upto +3dBm

Supports BLE 5.3

Yes

Advertisment type supported

Legacy and extended

Dimensions

Approx 40*42*20mm

Beacon interval

100ms to 40000ms

IP 65

Yes

Security/Password Protected

Yes, AES128

Temperature sensor available

Yes

Temperature sensor range(accuracy)

-30°C to 75°C(0.5°C)

Operating temperature range

-30°C to 60°C

Working humidity

0 to 99%RH

Flash Memory

512KB

No of records stores

30000 Records

Parameter

Value

Bluetooth Version

BLE 5.3

Operating Valtage

1.7-3.6V

Current Consumption-Sleep Mode

640nA at 3V

Enclosure Material

ABS Enclosure

Current Consumption-Tx Mode at 0dBm

9.6 mA at 3V

Battery life

Upto 1 years

Transmit Power

Upto +3dBm

Supports BLE 5.0

Yes

Advertisment type supported

Legacy and extended

Dimensions

Approx 40*42*20mm

Beacon interval

100ms to 40000ms

Security/Password Protected

Yes, AES128

IP65

Yes

Temperature sensor available

Yes

Temperature sensor range(accuracy)

-30°C to 75°C(0.5°C)

Operating temperature range

-30°C to 75°C

Working humidity

0 to 99%RH

Flash Memory

512 KB

No of records stores

30000 Records

FAQs

Discover quick answers to your most pressing inquiries about our BLE based monitoring system, from operational specifics to integration queries. Dive into our FAQs to enhance your understanding of how the technology works.

 Yes, we do have. Look at our ER-BLE-V1 version.

The battery life depends on beacon internal and the battery capacity. We are flexible to provide you higher battery at a extra cost. The normal configuration should last for ~1 year. Do reach out to us at sales@easyreach.co.in

 Yes, the device is designed and manufactured in India.

Yes, we can do that too. However, it depends on the quantity. Do reach out to sales@easyreach.co.in
